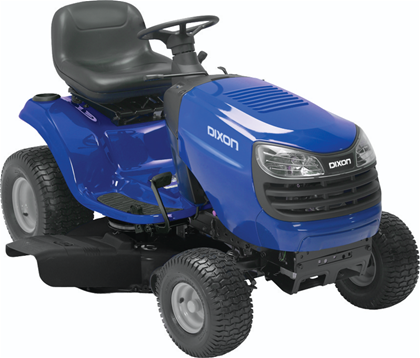

Dixon D2246YT |
 |
The D2246YT yard tractor comes fully featured. Features such as hydrostatic pedal control transmission, electric push button blade engagement, cruise control and deluxe comfort features from seat to steering wheel. Dixon yard tractors offer premium performance with excellent results. |
Features:
-
Comfort Steering Wheel
The ergonomic and comfortable steering wheel makes your ride more enjoyable.
-
KOHLER® Courage V-Twin Engine
Fully pressure-lubricated, two-cylinder KOHLER® engine with oil pump and oil filter. Powerful and quiet.
-
Step-through
Step-through makes the mower easy to climb on and off.
-
Pedal-operated Hydrostatic Transmission
Easy speed and direction control with pedal-operated hydrostatic transmission. Separate pedals for forward and reverse.
-
Electric Blade Engagement
To engage the cutting blades, you only need to pull the lever on the control panel.
-
Cruise Control
A convenient, efficient function that ensures the tractor keeps an even speed, even if the lawn is undulating or sloping.
-
Cup Holder
Cup holder for refreshments while mowing.
-
Steel Chassis
The robust chassis is made of steel, ensuring maximum durability and sturdiness.
|
Specifications
Engine
|
| Engine Manufacturer |
Kohler |
| Engine Name |
Courage V-Twin |
| Power |
22 hp |
| Cylinder Displacement |
44.2 cu.inch |
| Cylinders |
2 |
| Engine Cooling |
Air |
| Generator |
12 A |
| Battery |
Gasoline |
| Fuel Tank Volume |
3 gal. |
| Fuel Tank Location |
Rear |
| Engine Lubrication Type |
Full Pressure |
| Oil Capacity |
64 fl oz |
| Oil Filter |
Yes |
Drive System
|
| Transmission Type |
Hydrostatic |
| Transmission Manufacturer |
Tuff Torq |
| Drive Method |
Pedal-operated |
| Speed Forward (min-max) |
0-5.2 mph |
| Speed Reverse (min-max) |
0-2.9 mph |
Cutting Deck
|
| Cutting Width |
46 inch |
| Cutting Deck Type |
Stamped vented deck system |
| Cutting Deck Material |
Steel |
| Deck Lifting System |
Manual, hand operated |
| Cutting Methods |
Collect/Mulch/Side ejection |
| Cutting Height (min-max) |
1.5 - 4 inch |
| Cutting Height Adjustment |
Notch |
| Cutting Height Steps |
6 |
| Cutting Height Adjuster |
Fender-mounted |
| Blade Engagement |
Electric Cluctch |
| Blades |
2 |
| Blade Type |
Hi Performance |
| Anti-scalp Wheels |
4 |
| Powder-coated Cutting Deck |
Yes |
| Deck Wash Port |
Yes |
Other
|
| Seat Back Height |
High |
| Seat Material |
Vinyl |
| Steering Wheel Type |
Comfort |
| Step-through Chassis |
Yes |
| Cast Iron Front Axle |
Yes |
| Front-End Protection |
Tube Bumper |
| Headlights |
Yes |
| Fuel Level Window |
Yes |
| Hour Meter |
Yes |
| Cruise Control |
Yes |
| Cup Holder |
Yes |
| Collector |
Available as accessory |
| Mulch Kit/Plate |
Available as accessory |
Dimensions
|
| Tire Size (front) |
15x6-6" |
| Tire Size (rear) |
20x8-8" |
| Turning Radius (min) |
16" |
| Wheelbase |
47.5" |
| Base Machine (length) |
69 inch |
| Base Machine Width (chute down) |
59.75 inch |
| Base Machine Width (chute up) |
48 inch |
| Base Machine (height) |
41.5 inch |
| Weight |
451 lbs |
Warranty
|
| Homeowner Warranty |
2 Year Limited |
|
|
