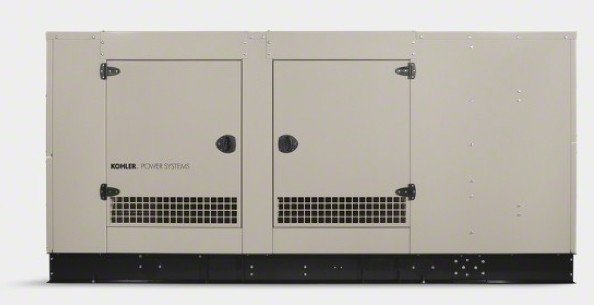

Kohler 125RESC
125 kW, Single Phase or 3 Phase, LP|Natural Gas
|
 |
Reliable power for very large residential or small business needs. Built to weather the storms, our largest natural gas/liquid propane generators with industrial-grade engines keep your family comfortable and your business running when a utility failure or storm knocks out power. |
Features
-
Powerful.
In just 10 seconds, your KOHLER generator automatically powers everything, keeping you connected to the things you love to do.*
-
Smart.
You get steady, high-quality power that protects your electronics from damage related to low-quality power sources.
-
Advanced.
The Decision-Maker® 3000 controller with patented software is compatible with optional accessories that let you monitor your system remotely through your PC.
-
Exterior options.
Choose the optional corrosion-resistant aluminum enclosure or standard steel enclosure.
-
Premium warranty.
We’ve got you covered with 5-year, 2,000-hour protection.
THE POWER YOU NEED
-
A popular choice for industrial applications
-
Excellent peak motor-starting capacity: 440kVA at 240V
-
Premium power quality delivers exceptional digital voltage and frequency regulation along with extremely low levels of harmonic distortion to protect sophisticated electronics
-
Powered by General Motors Vortec automotive-grade engine with hydraulic valve lifters to eliminate need for lengthy break-in periods and expensive valve adjustments; operation speed 1800 rpm
THE CONVENIENCES YOU EXPECT
-
Decision-Maker® 3000 controller provides advanced control, system monitoring and system diagnostics with remote-monitoring capability
-
Quiet, neighborhood-friendly operation with sound similar to a typical central air conditioner
-
Standard steel enclosure with automotive-grade paint
-
Optional corrosion-resistant aluminum enclosure
-
Runs on either natural gas or liquid propane (LPG) with simple switching between natural gas and LPG in the field
*Based on generator and load size. |
Specifications
| Rated kW LP |
105 kW |
| Rated kW NG |
125 kW |
| Amps LP |
438 amps |
| Amps NG |
521 amps |
| Peak Motor Starting kVA @240 V |
440 kVa |
| Alternator Note |
All information shown is for 1 Phase 60 Hz generator with the largest alternator option available. |
| Displacement |
8.8 L (537 cu. in.) |
| Horsepower |
NG 195 HP, LP 162 HP |
| Enclosure Material |
Aluminum|Steel |
| Sound Output During Full-speed Operation |
73 dB(A) |
| Response Time |
10 seconds |
| Warranty |
Five-year extended warranty |
| Country of Origin |
US |
| Certifications/Listings |
EPA|CSA|UL 2200 |
| Automatic Transfer Switch Included |
No |
| Remote Monitoring Available |
Yes |
| Off Grid / Utility Backup |
Utility Backup |
| Weight |
3509 lbs. |
| Alternator Type |
Brushless, Permanent-Magnet |
| Fuel Consumption on NG at 50% load? |
984 cfh |
| Fuel Consumption on LP at 50% load? |
354 cfh |
| Controller |
Decision-Maker® 3000 |
| Cylinder Arrangement |
V-8 |
| Dimensions |
3526mm x 1153mm x 1724 mm (138.8 in. x 45.4 in. x 67.9 in.) |
| Engine Manufacturer/Description |
General Motors |
| Engine Model |
Industrial Powertrain Vortec 8.8L |
| Engine/Alternator RPM |
1800 |
| Fuel Type |
LP|Natural Gas |
| Frequency |
60 Hz |
| Phase |
Single Phase or 3 Phase |
| Voltage @ 60 Hz |
120/240 |
| Digital Voltage Regulation |
±0.5% |
|
|
