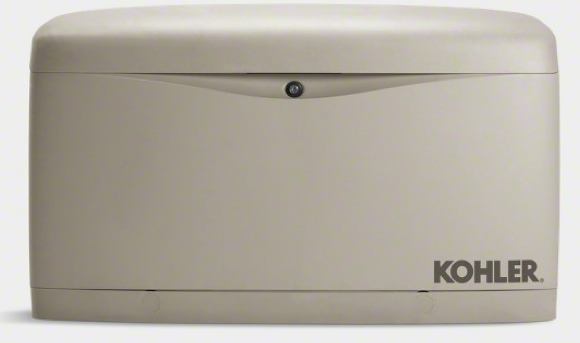

Kohler 14RESA
14 kW, Single Phase, LP|Natural Gas |
 |
Our most popular generators for backup power provide award-winning reliability and performance. When you lose power during an outage or storm, a hard-working 14/20 kW KOHLER® generator keeps your appliances working, the heat or AC running and your security system on.* |
Features
-
Reliable. Every KOHLER® generator is equipped with a heavy-duty, commercial-grade engine that stands up to extreme weather.
-
Powerful In just 10 seconds, your KOHLER generator automatically restores power to a 5-ton (60,000 BTU) air conditioner, major appliances and electronics.*
-
Premium warranty.
We’ve got you covered with 5-year, 2,000-hour protection, and a corrosion-proof enclosure that’s built to last.
-
Award winner.
KOHLER generators have received several awards, including the Most Valuable Product (MVP) Award 2010 by Building Products magazine.
THE POWER YOU NEED
-
PowerBoost™ technology provides power to start large loads such as central air conditioners without dropping power to other appliances
-
Extraordinary peak motor-starting capacity: 14RESA at 35kVA at 240V and 20RESA at 40.5kVA at 240V
-
Premium power quality delivers exceptional digital voltage and frequency regulation along with low levels of harmonic distortion to protect sophisticated electronics
-
Powered by reliable KOHLER Command PRO® engine, designed and tested for tough commercial applications; with hydraulic valve lifters to eliminate need for lengthy break-in periods and expensive valve adjustments; operation speed is 3600 rpm (the standard for air-cooled generators)
THE CONVENIENCES YOU EXPECT
-
RDC2 controller designed for today's sophisticated electronics manages both the generator set and Model RXT transfer switch functions
-
Quiet, neighborhood-friendly operation with sound levels similar to a typical central air conditioner
-
Stylish corrosion-proof enclosure impact tested to -30°F
-
Runs on either natural gas or liquid propane (LPG) with simple switching between natural gas and LPG in the field
-
Streamlined installation, including built-in base that eliminates need for concrete mounting pad and simple terminal block for easy field connections
-
Model 14RESA approved for off-grid applications with 18-month/1000-hour off-grid warranty
-
Compatible with optional OnCue® Generator Management System 3.1 or higher and Programmable Interface Monitor
*Based on generator and load size. |
Specifications
| Rated kW LP |
14 kW |
| Rated kW NG |
12 kW |
| Amps LP |
58.3 amps |
| Amps NG |
50.0 amps |
| Peak Motor Starting kVA @240 V |
35 kVa |
| Alternator Note |
All information shown is for 1 Phase 60 Hz generator with the largest alternator option available. |
| Displacement |
725 cm3 (44 cu. in.) |
| Horsepower |
NG 20.5 HP, LP 23.6 HP |
| Enclosure Material |
Composite |
| Sound Output During Weekly Exercise |
63 dB(A) |
| Sound Output During Full-speed Operation |
67 dB(A) |
| Response Time |
10 seconds |
| Warranty |
Premium five-year limited warranty |
| Country of Origin |
US |
| Certifications/Listings |
EPA|CSA|UL 2200 |
| Automatic Transfer Switch Included |
No |
| Remote Monitoring Available |
Yes |
| Off Grid Warranty |
18-month/1000-hour for off-grid applications |
| Off Grid / Utility Backup |
Off Grid|Utility Backup |
| Weight |
420 lbs. |
| Alternator Type |
2-Pole, Rotating Field |
| Fuel Consumption on NG at 50% load? |
124 cfh |
| Fuel Consumption on LP at 50% load? |
60 cfh |
| Controller |
RDC2 Controller |
| Cylinder Arrangement |
V-2 |
| Dimensions |
1216mm x 655mm x 733mm (48 in. x 26.2 in. x 29 in.) |
| Engine Manufacturer/Description |
KOHLER |
| Engine Model |
CH740 |
| Engine/Alternator RPM |
3600 |
| Fuel Type |
LP|Natural Gas |
| Frequency |
50 Hz|60 Hz |
| Phase |
Single Phase |
| Voltage @ 60 Hz |
120/240 |
| Digital Voltage Regulation |
±1.0% |
|
|
