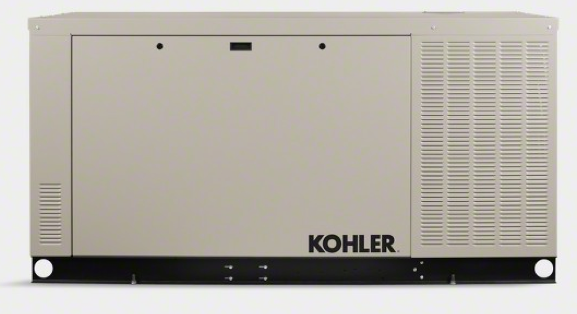

Kohler 38RCL

38 kW, Single Phase or 3 Phase, Natural Gas|LP

Reliable power for large residential or small business needs. When the power goes out during a bad storm or power failure, your 38 kW KOHLER® generator with industrial-grade engine keeps your home or business – from central air to sump pump to personal computers – up and running.*

Features

  • Powerful. In just 10 seconds, your KOHLER generator automatically restores power and keeps you connected to the things you love to do.

  • Smart. You get steady, high-quality power that protects your electronics from damage related to low-quality power sources.

  • Premium warranty. We’ve got you covered with 5-year, 2,000-hour protection, and an aluminum enclosure that’s built to last.

  • Quiet.Neighborhood-friendly, with weekly exercise volume that’s similar to a normal conversation.

  • Innovative. This generator’s patent-pending innovations include a three-fan, automotive-style cooling system that keeps the sound level down.

THE POWER YOU NEED

  • Powerful operation on either natural gas or liquid propane (LPG); the 38RCL provides 158 amps on natural gas or LPG, while the 48RCL provides 200 amps on natural gas or LPG

  • Extraordinary peak motor-starting capacity, with 38RCL at 95kVA at 240V and 48RCL at 113kVA at 240V

  • Premium power quality delivers exceptional digital voltage and frequency regulation along with extremely low levels of harmonic distortion to protect sophisticated electronics and appliances

  • Powered by General Motors Vortec automotive-grade engine with hydraulic valve lifters to eliminate need for lengthy break-in periods and expensive valve adjustments; operation speed 1800 rpm

THE CONVENIENCES YOU EXPECT

  • RDC2 controller designed for today's sophisticated electronics manages both the generator set and Model RXT transfer switch functions

  • Extremely quiet operation with sound at 61dBA at full speed and 58 dBA at exercise (normal conversation level)

  • Corrosion-resistant aluminum enclosure is standard

  • Runs on either natural gas or liquid propane (LPG) with simple switching between natural gas and LPG in the field

  • Streamlined installation, including built-in base that eliminates need for concrete mounting pad and simple terminal block for easy field connections

  • Compatible with optional OnCue® Generator Management System 3.1 or higher and Programmable Interface Monitor

*Based on generator and load size.

Specifications

Rated kW LP 38 kW
Rated kW NG 38 kW
Amps LP 158 amps
Amps NG 158 amps
Peak Motor Starting kVA @240 V 95 kVa
Alternator Note All information shown is for 1 Phase 60 Hz generator with the largest alternator option available.
Displacement 4.3 L (262 cu. in.)
Horsepower 75 HP
Enclosure Material Aluminum
Sound Output During Weekly Exercise 57 dB(A)
Sound Output During Full-speed Operation 61 dB(A)
Response Time 10 seconds
Warranty Premium five-year limited warranty
Country of Origin US
Certifications/Listings CSA|EPA
Automatic Transfer Switch Included No
Remote Monitoring Available Yes
Off Grid / Utility Backup Utility Backup
Weight 1740 lbs.
Alternator Type Brushless, Rare-Earth, Permanent-Magnet
Fuel Consumption on NG at 50% load? 145 cfh
Fuel Consumption on LP at 50% load? 145 cfh
Controller RDC2 Controller
Cylinder Arrangement V-6
Dimensions 2286 mm x 851 mm x 1146 mm (90 in. x 33.5 in. x 45.1 in.)
Engine Manufacturer/Description General Motors
Engine Model Industrial Powertrain Vortec 4.3L
Engine/Alternator RPM 1800
Fuel Type Natural Gas|LP
Frequency 60 Hz|50 Hz
Phase Single Phase or 3 Phase
Voltage @ 60 Hz 120/240
Digital Voltage Regulation ±1.0%
