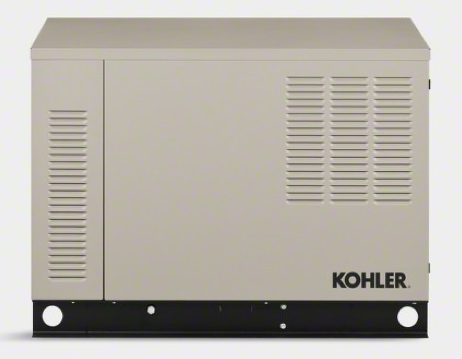

Kohler 6VSG
6 kW, Single Phase, Natural Gas|LP |
 |
The generator made for renewable energy, including solar power or other remote applications. The KOHLER 6VSG battery-charging generator efficiently charges battery banks when renewable energy sources can’t keep up with demand. If your battery charge drops below a pre-set level, the 6VSG charges it automatically. |
Features
-
High-quality power. The 6VSG provides consistent power to charge battery banks used with renewable energy, telecom and other remote applications.
-
Economical. The 6VSG is fueled by clean, affordable natural gas or liquid propane (LPG).
-
Remote control. Add the Programmable Interface Module and OnCue® Generator Management System to communicate with the 6VSG remotely.
-
Automatic. The generator senses when the battery bank is running low and turns on automatically to keep up with demand.
STATE-OF-THE-ART BATTERY CHARGING
-
Designed specifically for efficient charging of battery banks for renewable energy, telecom and other remote applications; provides consistent direct-current output to maintain battery banks directly without inefficient conversions from alternating current
-
Can be used for industrial battery bus support to reduce the size of battery banks
-
Generator can maintain batteries directly without an expensive converter or monitoring equipment
-
Longer engine life and reduced fuel consumption when compared to fixed speed; variable engine speed (2300-2900 RPM) reduces maintenance requirements and fuel consumption and extends the life of the engine
-
Powered by commercial-grade KOHLER Command PRO® engine
-
Accommodates most systems; compatible with positive- or negative-grounded systems in 24, 26 and 48 volt configurations
SPECIAL FEATURES
-
Extremely quiet operation with sound at 62 dBA at 50% load
-
Steel enclosure with automotive-grade paint for advanced corrosion protection
-
Runs on either natural gas or liquid propane (LPG); simple switching between natural gas and LPG in the field
-
5-year, 2000-hour warranty for on-grid applications
-
18-month, 1000-hour warranty for off-grid application
-
Compatible with optional OnCue® Generator Management System 3.1 or higher and Programmable Interface Monitor
-
Optional installed communications kit includes fuel-pressure switch and enclosure intrusion alarm
|
Specifications
| Rated kW LP |
6 kW |
| Rated kW NG |
6 kW |
| Amps LP |
111 amps |
| Amps NG |
111 amps |
| Alternator Note |
All information shown is for 48 VDC nominal voltage. |
| Displacement |
725 cm3 (44 cu. in.) |
| Horsepower |
NG 18.5 HP, LP 21.2 HP |
| Enclosure Material |
Steel |
| Sound Output During Full-speed Operation |
65 dB(A) |
| Warranty |
Premium five-year/2000-hour limited warranty for on-grid applications, 18-month/1000-hour for off-grid applications |
| Country of Origin |
US |
| Certifications/Listings |
EPA|CSA |
| Automatic Transfer Switch Included |
No |
| Remote Monitoring Available |
Yes |
| Off Grid Warranty |
18-month/1000-hour for off-grid applications |
| Off Grid / Utility Backup |
Utility Backup|Off Grid |
| Weight |
420 lbs. |
| Alternator Type |
Brushless, Permanent-Magnet |
| Fuel Consumption on NG at 50% load? |
32 cfh |
| Fuel Consumption on LP at 50% load? |
32 cfh |
| Controller |
VSC Controller |
| Cylinder Arrangement |
V-2 |
| Dimensions |
1008 mm x 707 mm x 723 mm (39.7 in. x 27.8 in. x 28.5 in.) |
| Engine Manufacturer/Description |
KOHLER |
| Engine Model |
CH740 |
| Engine/Alternator RPM |
2300-2900 |
| Fuel Type |
Natural Gas|LP |
| Frequency |
Variable Speed, Direct Current |
| Phase |
Single Phase |
| Voltage @ 60 Hz |
24/48 |
| Digital Voltage Regulation |
±0.5% |
|
|
