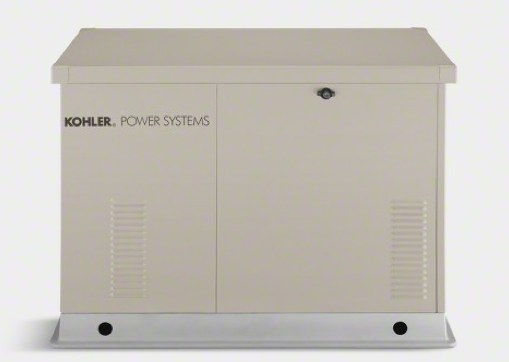

Kohler 8.5RES
8.5 kW, Single Phase, Natural Gas|LP |
 |
Affordable, commercial-grade power for basic power needs. When a bad storm or utility failure knocks out your power, the 8.5RES KOHLER® generator keeps your lights on, fridge cold and sump pump working. This generator will power most appliances in smaller homes, or a few critical items in larger homes.* |
Features
-
Inside this generator is a commercial-grade engine built to withstand extreme workloads year after year.
-
In just 10 seconds, your KOHLER generator automatically restores power to your heat or AC as well as appliances and electronics.*
-
We’ve got you covered with 5-year, 2,000-hour protection and a steel enclosure that’s built to last.
-
You get steady, high-quality power that protects your electronics from damage related to low-quality power sources.
-
No pricey concrete pad needed. Your contractor – and your wallet – will appreciate the built-in mounting pad and easy-to-connect terminal block.
THE POWER YOU NEED
-
PowerBoost™ technology provides the power to start large loads without dropping power to other appliances
-
Extraordinary peak motor-starting capacity: 23kVA at 240V
-
Premium power quality delivers exceptional digital voltage and frequency regulation along with low levels of harmonic distortion to protect sophisticated electronics
-
Powered by reliable KOHLER Command PRO® engine, designed and tested for tough commercial applications; with hydraulic valve lifters to eliminate need for lengthy break-in periods and expensive valve adjustments; operation speed is 3600 rpm (the standard for air-cooled generators)
THE CONVENIENCES YOU EXPECT
-
ADC-RES Advanced Digital Control designed for today’s sophisticated electronics
-
Quiet, neighborhood-friendly operation with sound levels similar to a typical central air conditioner
-
Steel enclosure with automotive-grade paint for advanced corrosion protection
-
Runs on either natural gas or liquid propane (LPG) with simple switching between natural gas and LPG in the field
-
Streamlined installation, including built-in base that eliminates need for concrete mounting pad and simple terminal block for easy field connections
-
Compatible with optional OnCue® Generator Management System
*Based on generator and load size. |
Specifications
| Rated kW LP |
8.5 kW |
| Rated kW NG |
7.0 kW |
| Amps LP |
35 amps |
| Amps NG |
29 amps |
| Peak Motor Starting kVA @240 V |
23 kVa |
| Alternator Note |
All information shown is for 1 Phase 60 Hz generator with the largest alternator option available. |
| Displacement |
0.624 L (38 cu. in.) |
| Horsepower |
NG 13.4 HP, LP 15.4 HP |
| Enclosure Material |
Steel |
| Sound Output During Full-speed Operation |
65 dB(A) |
| Response Time |
10 seconds |
| Warranty |
Premium five-year limited warranty |
| Country of Origin |
US |
| Certifications/Listings |
EPA|CSA|CARB |
| Automatic Transfer Switch Included |
No |
| Remote Monitoring Available |
Yes |
| Off Grid Warranty |
18-month/1000-hour for off-grid applications |
| Off Grid / Utility Backup |
Utility Backup|Off Grid |
| Weight |
430 lbs. |
| Alternator Type |
2-Pole, Rotating Field |
| Fuel Consumption on NG at 50% load? |
31 cfh |
| Fuel Consumption on LP at 50% load? |
31 cfh |
| Controller |
Advanced Digital Control |
| Cylinder Arrangement |
V-2 |
| Dimensions |
1123mm x 726mm x 804mm (44.2 in. x 28.6 in. x 31.6 in.) |
| Engine Manufacturer/Description |
KOHLER |
| Engine Model |
CH20 |
| Engine/Alternator RPM |
3600 |
| Fuel Type |
Natural Gas|LP |
| Frequency |
60 Hz|50 Hz |
| Phase |
Single Phase |
| Voltage @ 60 Hz |
120/240 |
| Digital Voltage Regulation |
±1.5% |
|
|
